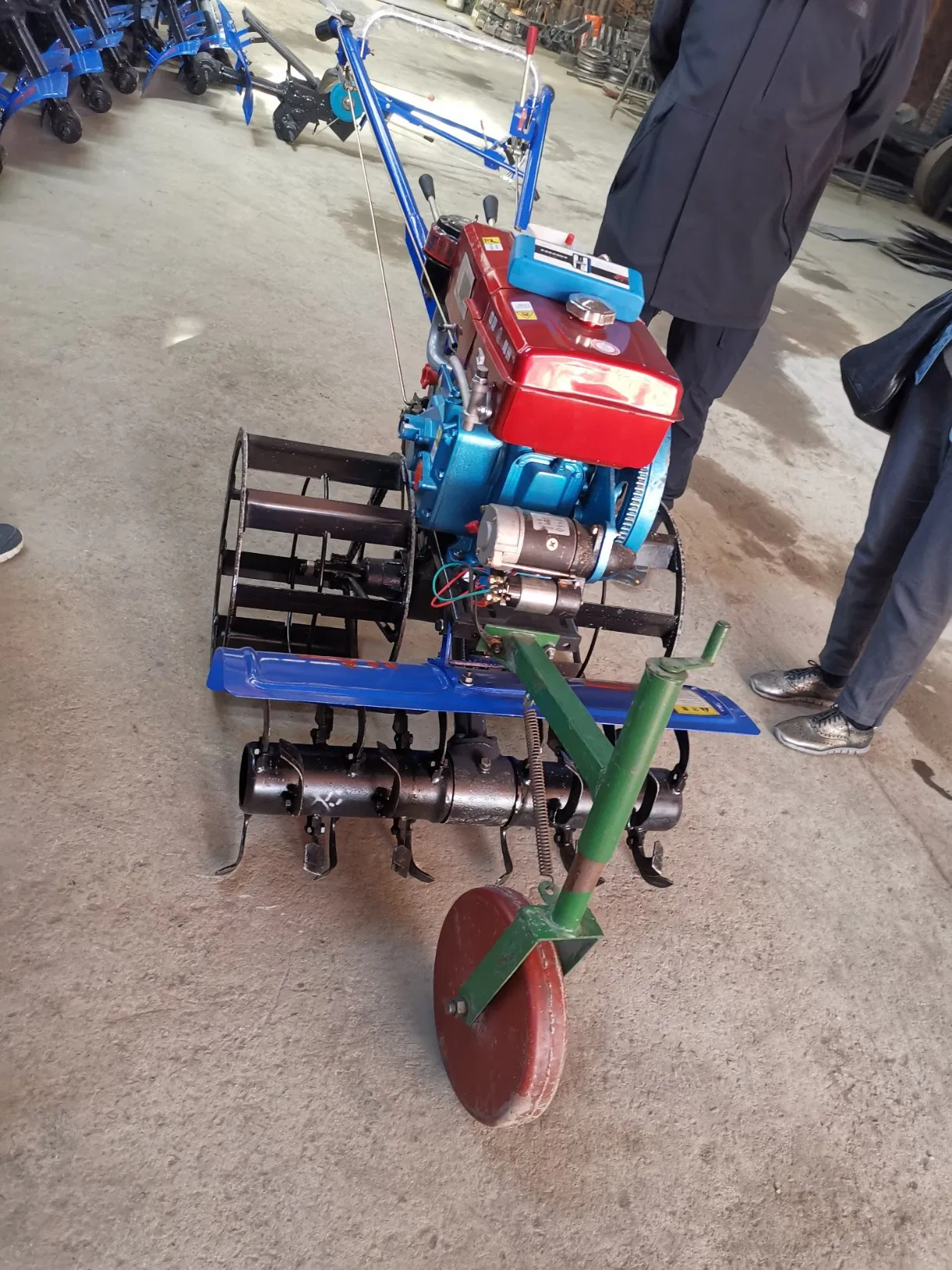

Farm Machinery Hand Ploughing Machine Cultivator

Customization: Available
Type: Rotary Tiller
Application Field: Agriculture

Product Description

📋 Basic Info.
Model NO.
ACME-003
Farming Policy
Paddy Field Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running
Traction Type
Self Propelled
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Certification
ISO
Color
Blue
Name
Power Tiller Cultivator
Function
Paddy Field Tillage
Power
8HP Diesel Engine
Efficiency
0.07ha./H
Fuel Consumption
15kg/Ha.
Work Depth
>10cm
Weight
125kg
Size
850X380X850 mm
Origin
China
Farm Machinery Hand Ploughing Machine Cultivator
⚙️ Product Description
Agricultural Machinery Hand Ploughing Machine Cultivator
  • Versatile Application: Suitable for dry farmland and paddy farmland. Performs well in mountains, hilly areas, orchards, vegetable greenhouses, potato land, corn land, and sand land.
  • User Friendly: Compact design makes it ideal for older operators or women to finish tilling fields efficiently.
  • Exclusive Technology: Equipped with a special diesel engine and a patented gearbox design for optimal performance.
  • Key Features: Compact, Agile, Light, Reliable, and high quality.
  • Multi-functional: Supports ploughing, rotary tillage, sowing, threshing, and suction.
  • Easy Adaptability: Quick coupling system allows for easy changing of implements such as mowers, trailers, water pumps, and snow blowers.
📊 Technical Specifications
Engine TypeR180 diesel engine
Max Power KW /rpm5.15/2600
Work Efficiency hm2/h0.07
Fuel Consumption kg/hm215.00
TransmissionChain driving
Gear Shifting-1, 0, 1, 2
Tilling Depth (mm)>100mm
Tilling Width (mm)800mm
Weight125 kg
Packing Size850x380x850 mm
Loading Capacity20GP: 114 pcs / 40HQ: 252 pcs
❓ Frequently Asked Questions
What types of terrain can this power tiller handle?
The ACME-003 is designed for versatile use in dry farmland, paddy fields, mountain areas, hilly terrains, orchards, and greenhouses.
Is the machine suitable for manual operation by elderly people?
Yes, its compact, lightweight, and agile design makes it very easy to handle for both elderly operators and women.
Can I use different farming tools with this cultivator?
Yes, it features a quick coupling system that allows for easy attachment of tools like mowers, trailers, water pumps, and rotary ploughs.
What is the fuel consumption of the diesel engine?
The machine is quite efficient with a fuel consumption rate of approximately 15.00 kg per hectare.
What are the transmission details?
This model utilizes a reliable chain drive transmission system with gear shifting options of -1, 0, 1, and 2.
How is the product packaged for international shipping?
The power tiller is securely packed in high-quality wood cases to ensure safe transport during international shipping.
