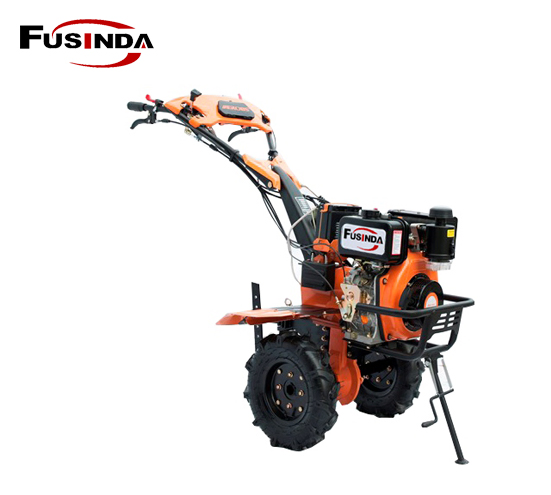

New Power Tiller Cultivator with Long Hand Bar and Tool Box Fd1050de

Customization: Available
Type: Multifunctional Pastoral Manage Machine
Application Field: Agriculture, Livestock, Aquaculture

Product Description

Basic Specifications

Model NO.
FD1050DE
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery
Traction Type
Semi Hanging
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Orange
Fuel Consumption
Lower Fuel Consumption
Output
Higher Output
HS Code
8432290000

Product Overview

The FD1050DE Power Tiller is designed with a long hand bar and integrated tool box. This cultivator is engineered to loosen and smooth soil both before and after planting crops. It effectively controls weeds in agricultural fields and is ideal for soft to medium-hard soil preparation.

Main Characteristics

  • Compact structure with a professional appearance
  • Lightweight and small size for easy maneuverability
  • Powered by an air-cooled engine with low fuel consumption
  • Simple operation and easy maintenance
  • All-gear transmission (2 forward, 1 reverse)
  • Stable output power with quality assurance

Technical Specifications

Category Description FD1050DE Details
Engine Engine Model 178F
Displacement (cc) 298
Max. Power Hp (Kw) 7
Fuel Tank Capacity (L) 3.5
Starting System Recoil Start / Electric Start
Tiller Tilling Width (mm) 900-1350
Tilling Depth (mm) 100-200
Gear Shift -1, 2, 0, 1
Transmission GEAR
Standard Equipment Tires & Blades 4.0-8 Tires / 4 Pieces x 4 Groups Blades
Packaging Dimension (mm) 770X440X870

Product Gallery

Power Tiller View 1

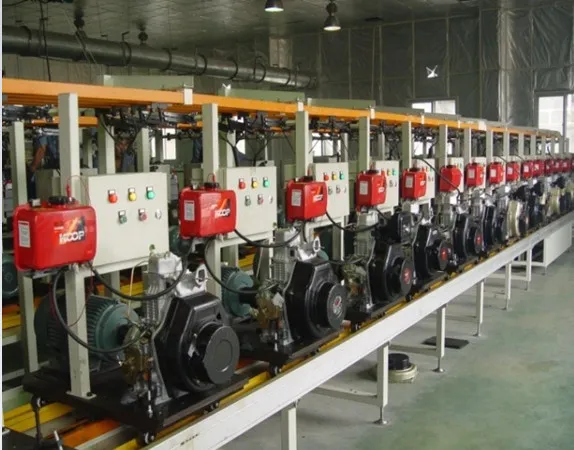

Power Tiller View 2

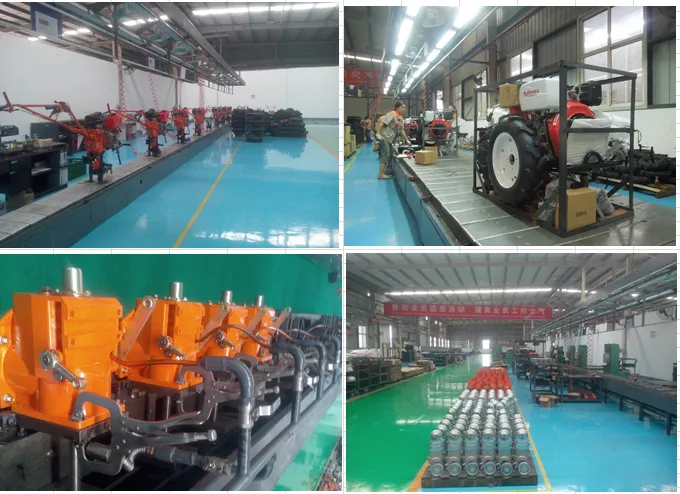

Power Tiller View 3

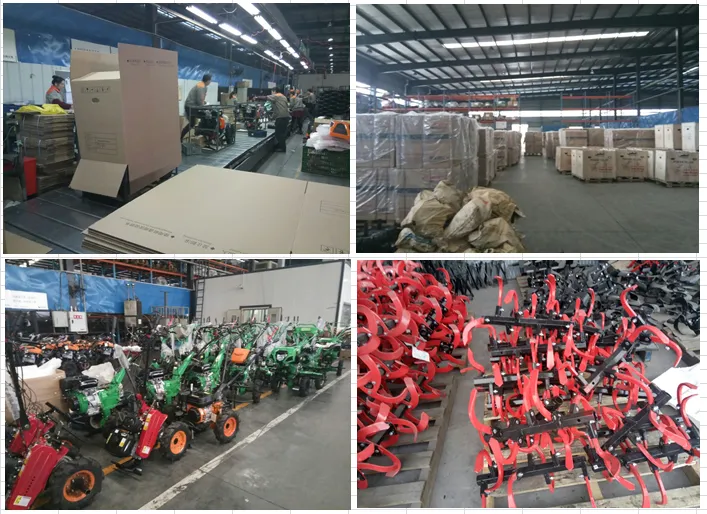

Power Tiller View 4
Power Tiller View 5

Why Choose Our Equipment?

  • 12 years of manufacturing expertise in general machinery
  • Professional engineering and rigorous testing equipment
  • Factory direct supply ensuring competitive pricing
  • Fast and efficient delivery with strict quality control
  • Professional after-sales service and one-year warranty

Frequently Asked Questions

1. What type of soil is the FD1050DE suitable for?
This power tiller is specifically designed for soft and medium-hard soil preparation, making it ideal for most agricultural fields.
2. What are the starting options for this model?
The FD1050DE comes with dual starting options: a standard Recoil Start and a convenient Electric Start system.
3. How many gears does the transmission have?
The tiller features an all-gear transmission system with 2 forward gears, 1 reverse gear, and a neutral position for versatile operation.
4. Can the tilling width be adjusted?
Yes, the tilling width is adjustable between 900mm and 1350mm to suit different farming needs.
5. What is included in the standard equipment?
Standard equipment includes 4.0-8 tires and a set of blades (4 pieces x 4 groups). Optional larger tires and different blade configurations are also available.
6. Is there a warranty for this machine?
Yes, we provide a one-year guaranteed warranty and professional after-sales support for all our machines.
